Boolean logic
Boolean operations
Since computer hardware is based on the representation and manipulation of binary values, Boolean functions play the central role in the specification, construction, and optimization of hardware architecture. The first step towards constructing computer architecture is to formulate and analyze Boolean functions.
Any Boolean function can be expressed using at least one Boolean expression called the canonical representation. Canonical representation is used to reconstruct a Boolean function from the truth table.
Any Boolean function, no matter how complex, could be expressed using three Boolean operators only: And, Or, and Not. Further still, we can construct any Boolean function using Nand operations alone.
A gate is a physical device that implements a Boolean function. If a Boolean function \(f\) operates on \(n\) variables and returns \(m\) binary results, the gate that implements \(f\) will have \(n\) input pins and \(m\) output pins. The simplest gates are made of transistors wired in a specific topology to deliver its functionality.

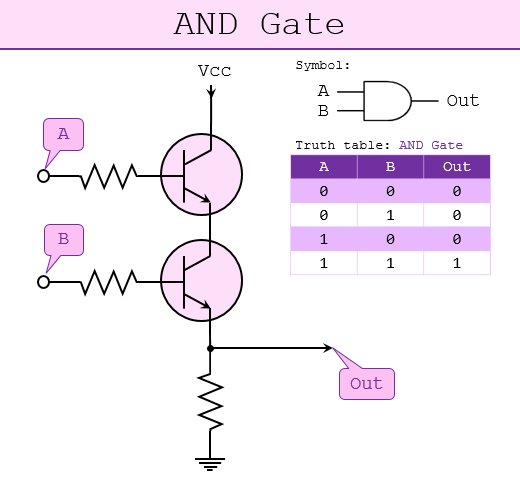

Gates can be implemented various ways. For a computer scientist perspective, a primitive gate is a black box device that implements an elementary logical operation. Logic design is the art of interconnecting gates in order to implement more complex functionality, the result of which is a composite gate. The interface of the logic design is unique. The logic design implementations may vary but preferably should use as few gates as possible.
We don't have to build hardware to test a logic design. Instead, we can use Hardware Description Language (HDL) to plan, debug, and optimize the entire chip before production. We will use the terms chip and gate interchangeably, even though the word chip denotes a rather complex collection of logic gates.
Nand gate
For simplicity, we will regard the Nand gate as the primitive building block on which every other gate is based.
| a | b | Nand(a,b) |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
Next we will implement basic logic gates using HDL language.
Not gate
/**
* Not gate:
* out = not in
*/
CHIP Not {
IN in;
OUT out;
PARTS:
Nand (a=in, b=in, out=out);
}
Not gate output values
| in | out |
| 0 | 1 |
| 1 | 0 |
And gate
/**
* And gate:
* out = 1 if (a == 1 and b == 1)
* 0 otherwise
*/
CHIP And {
IN a, b;
OUT out;
PARTS:
Nand(a=a, b=b, out=w1);
Not(in=w1, out=out);
}
And gate output values
| a | b | out |
| 0 | 0 | 0 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
Or gate
/**
* Or gate:
* out = 1 if (a == 1 or b == 1)
* 0 otherwise
*/
CHIP Or {
IN a, b;
OUT out;
PARTS:
Not(in=a, out=nota);
Not(in=b, out=notb);
Nand(a=nota, b=notb, out=out);
}
Or gate output values
| a | b | out |
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |
Exclusive-or gate
/**
* Exclusive-or gate:
* out = not (a == b)
*/
CHIP Xor {
IN a, b;
OUT out;
PARTS:
Not(in=a, out=nota);
Not(in=b, out=notb);
And(a=a, b=notb, out=w1);
And(a=nota, b=b, out=w2);
Or(a=w1, b=w2, out=out);
}
Exclusive-or gate output values
| a | b | out |
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
Multiplexor
/**
* Multiplexor:
* out = a if sel == 0
* b otherwise
*/
CHIP Mux {
IN a, b, sel;
OUT out;
PARTS:
Not(in=sel, out=notsel);
And(a=a, b=notsel, out=w1);
And(a=b, b=sel, out=w2);
Or(a=w1, b=w2, out=out);
}
Multiplexor output values
| a | b | sel | out |
| 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 0 |
| 0 | 1 | 0 | 0 |
| 0 | 1 | 1 | 1 |
| 1 | 0 | 0 | 1 |
| 1 | 0 | 1 | 0 |
| 1 | 1 | 0 | 1 |
| 1 | 1 | 1 | 1 |
Demultiplexor
/**
* Demultiplexor:
* {a, b} = {in, 0} if sel == 0
* {0, in} if sel == 1
*/
CHIP DMux {
IN in, sel;
OUT a, b;
PARTS:
Not(in=sel, out=notsel);
And(a=in, b=notsel, out=a);
And(a=in, b=sel, out=b);
}
Demultiplexor output values
| in | sel | a | b |
| 0 | 0 | 0 | 0 |
| 0 | 1 | 0 | 0 |
| 1 | 0 | 1 | 0 |
| 1 | 1 | 0 | 1 |
16-bit bitwise Not
/**
* 16-bit Not:
* for i=0..15: out[i] = not in[i]
*/
CHIP Not16 {
IN in[16];
OUT out[16];
PARTS:
Not(in=in[0], out=out[0]);
Not(in=in[1], out=out[1]);
Not(in=in[2], out=out[2]);
Not(in=in[3], out=out[3]);
Not(in=in[4], out=out[4]);
Not(in=in[5], out=out[5]);
Not(in=in[6], out=out[6]);
Not(in=in[7], out=out[7]);
Not(in=in[8], out=out[8]);
Not(in=in[9], out=out[9]);
Not(in=in[10], out=out[10]);
Not(in=in[11], out=out[11]);
Not(in=in[12], out=out[12]);
Not(in=in[13], out=out[13]);
Not(in=in[14], out=out[14]);
Not(in=in[15], out=out[15]);
}
16-bit bitwise Not output values
| in | out |
| 0000000000000000 | 1111111111111111 |
| 1111111111111111 | 0000000000000000 |
| 1010101010101010 | 0101010101010101 |
| 0011110011000011 | 1100001100111100 |
| 0001001000110100 | 1110110111001011 |
16-bit bitwise And
/**
* 16-bit bitwise And:
* for i = 0..15: out[i] = (a[i] and b[i])
*/
CHIP And16 {
IN a[16], b[16];
OUT out[16];
PARTS:
And(a=a[0], b=b[0], out=out[0]);
And(a=a[1], b=b[1], out=out[1]);
And(a=a[2], b=b[2], out=out[2]);
And(a=a[3], b=b[3], out=out[3]);
And(a=a[4], b=b[4], out=out[4]);
And(a=a[5], b=b[5], out=out[5]);
And(a=a[6], b=b[6], out=out[6]);
And(a=a[7], b=b[7], out=out[7]);
And(a=a[8], b=b[8], out=out[8]);
And(a=a[9], b=b[9], out=out[9]);
And(a=a[10], b=b[10], out=out[10]);
And(a=a[11], b=b[11], out=out[11]);
And(a=a[12], b=b[12], out=out[12]);
And(a=a[13], b=b[13], out=out[13]);
And(a=a[14], b=b[14], out=out[14]);
And(a=a[15], b=b[15], out=out[15]);
}
16-bit bitwise And output values
| a | b | out |
| 0000000000000000 | 0000000000000000 | 0000000000000000 |
| 0000000000000000 | 1111111111111111 | 0000000000000000 |
| 1111111111111111 | 1111111111111111 | 1111111111111111 |
| 1010101010101010 | 0101010101010101 | 0000000000000000 |
| 0011110011000011 | 0000111111110000 | 0000110011000000 |
| 0001001000110100 | 1001100001110110 | 0001000000110100 |
16-bit bitwise Or
/**
* 16-bit bitwise Or:
* for i = 0..15 out[i] = (a[i] or b[i])
*/
CHIP Or16 {
IN a[16], b[16];
OUT out[16];
PARTS:
Or(a=a[0], b=b[0], out=out[0]);
Or(a=a[1], b=b[1], out=out[1]);
Or(a=a[2], b=b[2], out=out[2]);
Or(a=a[3], b=b[3], out=out[3]);
Or(a=a[4], b=b[4], out=out[4]);
Or(a=a[5], b=b[5], out=out[5]);
Or(a=a[6], b=b[6], out=out[6]);
Or(a=a[7], b=b[7], out=out[7]);
Or(a=a[8], b=b[8], out=out[8]);
Or(a=a[9], b=b[9], out=out[9]);
Or(a=a[10], b=b[10], out=out[10]);
Or(a=a[11], b=b[11], out=out[11]);
Or(a=a[12], b=b[12], out=out[12]);
Or(a=a[13], b=b[13], out=out[13]);
Or(a=a[14], b=b[14], out=out[14]);
Or(a=a[15], b=b[15], out=out[15]);
}
16-bit bitwise Or output values
| a | b | out |
| 0000000000000000 | 0000000000000000 | 0000000000000000 |
| 0000000000000000 | 1111111111111111 | 1111111111111111 |
| 1111111111111111 | 1111111111111111 | 1111111111111111 |
| 1010101010101010 | 0101010101010101 | 1111111111111111 |
| 0011110011000011 | 0000111111110000 | 0011111111110011 |
| 0001001000110100 | 1001100001110110 | 1001101001110110 |
16-bit multiplexor
/**
* 16-bit multiplexor:
* for i = 0..15 out[i] = a[i] if sel == 0
* b[i] if sel == 1
*/
CHIP Mux16 {
IN a[16], b[16], sel;
OUT out[16];
PARTS:
Mux(a=a[0], b=b[0], sel=sel, out=out[0]);
Mux(a=a[1], b=b[1], sel=sel, out=out[1]);
Mux(a=a[2], b=b[2], sel=sel, out=out[2]);
Mux(a=a[3], b=b[3], sel=sel, out=out[3]);
Mux(a=a[4], b=b[4], sel=sel, out=out[4]);
Mux(a=a[5], b=b[5], sel=sel, out=out[5]);
Mux(a=a[6], b=b[6], sel=sel, out=out[6]);
Mux(a=a[7], b=b[7], sel=sel, out=out[7]);
Mux(a=a[8], b=b[8], sel=sel, out=out[8]);
Mux(a=a[9], b=b[9], sel=sel, out=out[9]);
Mux(a=a[10], b=b[10], sel=sel, out=out[10]);
Mux(a=a[11], b=b[11], sel=sel, out=out[11]);
Mux(a=a[12], b=b[12], sel=sel, out=out[12]);
Mux(a=a[13], b=b[13], sel=sel, out=out[13]);
Mux(a=a[14], b=b[14], sel=sel, out=out[14]);
Mux(a=a[15], b=b[15], sel=sel, out=out[15]);
}
16-bit multiplexor output values
| a | b | sel | out |
| 0000000000000000 | 0000000000000000 | 0 | 0000000000000000 |
| 0000000000000000 | 0000000000000000 | 1 | 0000000000000000 |
| 0000000000000000 | 0001001000110100 | 0 | 0000000000000000 |
| 0000000000000000 | 0001001000110100 | 1 | 0001001000110100 |
| 1001100001110110 | 0000000000000000 | 0 | 1001100001110110 |
| 1001100001110110 | 0000000000000000 | 1 | 0000000000000000 |
| 1010101010101010 | 0101010101010101 | 0 | 1010101010101010 |
| 1010101010101010 | 0101010101010101 | 1 | 0101010101010101 |
8-way Or
/**
* 8-way Or:
* out = (in[0] or in[1] or ... or in[7])
*/
CHIP Or8Way {
IN in[8];
OUT out;
PARTS:
Or(a=in[0], b=in[1], out=w1);
Or(a=w1, b=in[2], out=w2);
Or(a=w2, b=in[3], out=w3);
Or(a=w3, b=in[4], out=w4);
Or(a=w4, b=in[5], out=w5);
Or(a=w5, b=in[6], out=w6);
Or(a=w6, b=in[7], out=out);
}
8-way Or output values
| in | out |
| 00000000 | 0 |
| 11111111 | 1 |
| 00010000 | 1 |
| 00000001 | 1 |
| 00100110 | 1 |
4-way 16-bit multiplexor
/**
* 4-way 16-bit multiplexor:
* out = a if sel == 00
* b if sel == 01
* c if sel == 10
* d if sel == 11
*/
CHIP Mux4Way16 {
IN a[16], b[16], c[16], d[16], sel[2];
OUT out[16];
PARTS:
Mux16(a=a, b=b, sel=sel[0], out=w1);
Mux16(a=c, b=d, sel=sel[0], out=w2);
Mux16(a=w1, b=w2, sel=sel[1], out=out);
}
4-way 16-bit multiplexor output values
| a | b | c | d | sel | out |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 00 | 0000000000000000 |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 01 | 0000000000000000 |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 10 | 0000000000000000 |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 11 | 0000000000000000 |
| 0001001000110100 | 1001100001110110 | 1010101010101010 | 0101010101010101 | 00 | 0001001000110100 |
| 0001001000110100 | 1001100001110110 | 1010101010101010 | 0101010101010101 | 01 | 1001100001110110 |
| 0001001000110100 | 1001100001110110 | 1010101010101010 | 0101010101010101 | 10 | 1010101010101010 |
| 0001001000110100 | 1001100001110110 | 1010101010101010 | 0101010101010101 | 11 | 0101010101010101 |
8-way 16-bit multiplexor
/**
* 8-way 16-bit multiplexor:
* out = a if sel == 000
* b if sel == 001
* etc.
* h if sel == 111
*/
CHIP Mux8Way16 {
IN a[16], b[16], c[16], d[16],
e[16], f[16], g[16], h[16],
sel[3];
OUT out[16];
PARTS:
Mux4Way16(a=a, b=b, c=c, d=d, sel=sel[0..1], out=w1);
Mux4Way16(a=e, b=f, c=g, d=h, sel=sel[0..1], out=w2);
Mux16(a=w1, b=w2, sel=sel[2], out=out);
}
8-way 16-bit multiplexor output values
| a | b | c | d | e | f | g | h | sel | out |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 000 | 0000000000000000 |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 001 | 0000000000000000 |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 010 | 0000000000000000 |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 011 | 0000000000000000 |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 100 | 0000000000000000 |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 101 | 0000000000000000 |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 110 | 0000000000000000 |
| 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 0000000000000000 | 111 | 0000000000000000 |
| 0001001000110100 | 0010001101000101 | 0011010001010110 | 0100010101100111 | 0101011001111000 | 0110011110001001 | 0111100010011010 | 1000100110101011 | 000 | 0001001000110100 |
| 0001001000110100 | 0010001101000101 | 0011010001010110 | 0100010101100111 | 0101011001111000 | 0110011110001001 | 0111100010011010 | 1000100110101011 | 001 | 0010001101000101 |
| 0001001000110100 | 0010001101000101 | 0011010001010110 | 0100010101100111 | 0101011001111000 | 0110011110001001 | 0111100010011010 | 1000100110101011 | 010 | 0011010001010110 |
| 0001001000110100 | 0010001101000101 | 0011010001010110 | 0100010101100111 | 0101011001111000 | 0110011110001001 | 0111100010011010 | 1000100110101011 | 011 | 0100010101100111 |
| 0001001000110100 | 0010001101000101 | 0011010001010110 | 0100010101100111 | 0101011001111000 | 0110011110001001 | 0111100010011010 | 1000100110101011 | 100 | 0101011001111000 |
| 0001001000110100 | 0010001101000101 | 0011010001010110 | 0100010101100111 | 0101011001111000 | 0110011110001001 | 0111100010011010 | 1000100110101011 | 101 | 0110011110001001 |
| 0001001000110100 | 0010001101000101 | 0011010001010110 | 0100010101100111 | 0101011001111000 | 0110011110001001 | 0111100010011010 | 1000100110101011 | 110 | 0111100010011010 |
| 0001001000110100 | 0010001101000101 | 0011010001010110 | 0100010101100111 | 0101011001111000 | 0110011110001001 | 0111100010011010 | 1000100110101011 | 111 | 1000100110101011 |
4-way demultiplexor
/**
* 4-way demultiplexor:
* {a, b, c, d} = {in, 0, 0, 0} if sel == 00
* {0, in, 0, 0} if sel == 01
* {0, 0, in, 0} if sel == 10
* {0, 0, 0, in} if sel == 11
*/
CHIP DMux4Way {
IN in, sel[2];
OUT a, b, c, d;
PARTS:
DMux(in=in, sel=sel[1], a=w1, b=w2);
DMux(in=w1, sel=sel[0], a=a, b=b);
DMux(in=w2, sel=sel[0], a=c, b=d);
}
4-way demultiplexor output values
| in | sel | a | b | c | d |
| 0 | 00 | 0 | 0 | 0 | 0 |
| 0 | 01 | 0 | 0 | 0 | 0 |
| 0 | 10 | 0 | 0 | 0 | 0 |
| 0 | 11 | 0 | 0 | 0 | 0 |
| 1 | 00 | 1 | 0 | 0 | 0 |
| 1 | 01 | 0 | 1 | 0 | 0 |
| 1 | 10 | 0 | 0 | 1 | 0 |
| 1 | 11 | 0 | 0 | 0 | 1 |
8-way demultiplexor
/**
* 8-way demultiplexor:
* {a, b, c, d, e, f, g, h} = {in, 0, 0, 0, 0, 0, 0, 0} if sel == 000
* {0, in, 0, 0, 0, 0, 0, 0} if sel == 001
* etc.
* {0, 0, 0, 0, 0, 0, 0, in} if sel == 111
*/
CHIP DMux8Way {
IN in, sel[3];
OUT a, b, c, d, e, f, g, h;
PARTS:
DMux(in=in, sel=sel[2], a=w1, b=w2);
DMux4Way(in=w1, sel=sel[0..1], a=a, b=b, c=c, d=d);
DMux4Way(in=w2, sel=sel[0..1], a=e, b=f, c=g, d=h);
}
8-way demultiplexor output values
| in | sel | a | b | c | d | e | f | g | h |
| 0 | 000 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 001 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 010 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 011 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 100 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 101 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 110 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 0 | 111 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 1 | 000 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 1 | 001 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
| 1 | 010 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 |
| 1 | 011 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 |
| 1 | 100 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 |
| 1 | 101 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| 1 | 110 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
| 1 | 111 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
Physical implementation of primitive gates
(x AND y) is a gate made of two transistors arranged in series.
| x | y | AND |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
(x OR y) is a gate made of two transistors arranged in parallel.
| x | y | OR |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |
NOT(x) is a gate made of a transistor which output is put before the transistor itself.
| x | NOT |
|---|---|
| 0 | 1 |
| 1 | 0 |
Electronics Projects: How to Create a Transistor NOT Gate Circuit
